Why 16.25x21x4 Air Filters Are Hard to Find
TL;DR
A 16.25x21x4 air filter isn't stocked at big-box stores because retailers carry only the highest-volume nominal sizes, and a fractional-width 4-inch filter isn't one of them. The quarter-inch comes from your equipment manufacturer's filter cabinet, not a catalog. The size is real and standard, sold online in MERV 8, 11, and 13, at an actual trimmed size of 16.25 x 21.00 x 3.63 inches.
The question I get most is some version of "is my filter size discontinued?" from someone who has driven to two stores and started to suspect their house is the problem. It isn't. A wall of filters reads like a catalog of what exists. It's a catalog of what sells.
Key Takeaways
It's a standard nominal size, not a custom cut, made in MERV 8, 11, and 13 but not stocked in stores.
Retailers carry only about ten common sizes, per filter manufacturer US Home Filter. That's shelf economics, not a verdict on your system.
A "close enough" size causes bypass. The EPA advises that filters fit snugly and that you never bend or crush one.
The cabinet access panel is a bypass path too. A perfect filter behind a loose door still lets unfiltered air past.

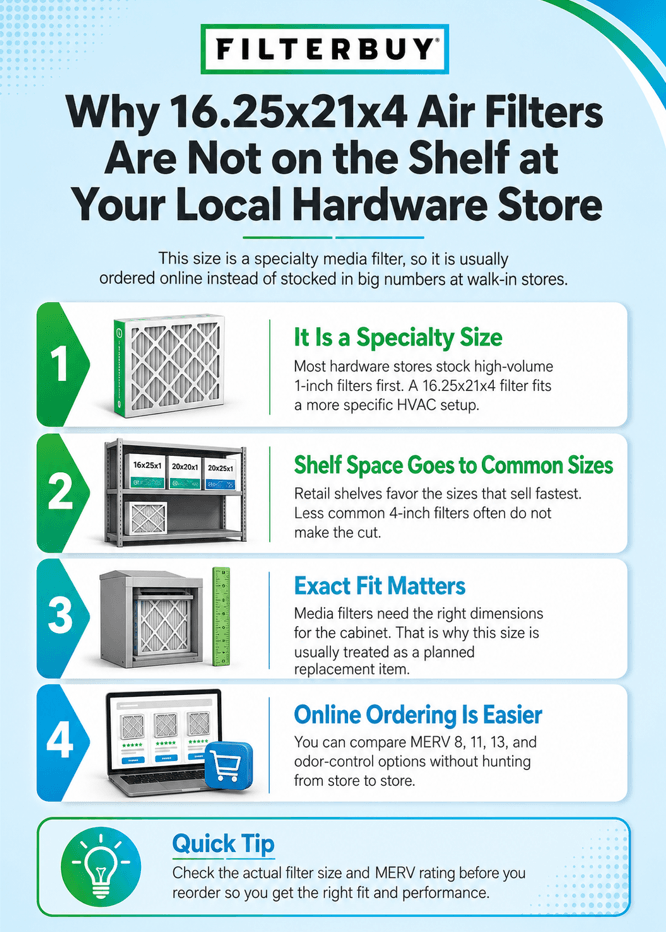

Why Doesn't Home Depot or Lowe's Stock a 16.25x21x4 Filter?
Retailers stock by sales velocity, not coverage, and filter manufacturer US Home Filter estimates only about ten sizes reach retail shelves at all. Check it yourself: Filterbuy's 16x20x1 sits at Walmart, Home Depot, and Target, but search those retailers for 16.25x21x4, and you'll find nothing. Same company, same media, same MERV 8.
Three forces push this size out.
Filter dimensions were never standardized. Manufacturers size the cabinet to the equipment and builders frame the compartment to the ductwork, which has no obligation to match a catalog. Quarter-inch slot widths follow.
Four-inch filters are a smaller universe. Deep media seats in a dedicated cabinet at the air handler rather than a return grille, so far fewer nominal sizes exist at 4 inches than at 1 inch.
And deep media is penalized twice by shelf math. A 4-inch filter takes roughly four times the shelf cube of a 1-inch for the same facing width, so retailers are really weighing which size sells faster per cubic foot of aisle. A slow mover that eats four times the space loses before it starts.
What Does the ".25" in 16.25x21x4 Actually Mean?
The .25 is a real quarter-inch of width, kept in the nominal label because rounding breaks the fit both ways: round down to 16 and you leave a bypass gap; round up to 17, and the filter won't seat.
Every filter carries two numbers, and only one is a measurement. Nominal size is the label you shop by. Actual size is the true trimmed dimension, slightly under nominal so the filter slides in without binding.
Look at the last two rows: same nominal label, two makers, actual dimensions differing on every face, including depth. The number on the box is a shopping category, not a measurement. Switch brands in a deep cabinet and read the frame.
A fractional width is also a diagnostic, and the news is good: paired with 4-inch depth, it almost always means a purpose-built cabinet sized to your equipment, so you can run MERV 13 without choking airflow. Homeowners who land here assume they drew the short straw. They drew the long one.
Which HVAC System Takes a 16.25x21x4 Filter?
No single brand owns this size. Unlike 20x25x5 (Aprilaire) or 21x23.5x5 (Trane Perfect Fit), a 16.25x21x4 slot usually belongs to a site-built rack framed to the ductwork at install, common in older homes and equipment swaps.
So identify it from your equipment, not a chart. Check inside the cabinet door first, since factory cabinets print the size there. If there's no label, photograph the air handler's model plate for your technician. A site-built rack has no documentation at all, making the opening the only authority, and retailer "compatible with" lists a hint rather than confirmation.
Why Can't I Just Use a 16x20x4 or 16x25x4 Instead?
Neither seals. A 16x20x4 is short on two faces, and a 16x25x4 is too long to seat, and gaps let air travel around the media instead of through it, carrying dust to the evaporator coil. A filter that doesn't seal isn't filtering. It's decorating.
The EPA's technical summary on residential air cleaners states that effectiveness may be substantially reduced when air leaks through a poorly installed frame, and that higher-efficiency filters make sealing more important, since denser media pushes air toward any leak. Cutting one down is the same failure with extra steps.
The bypass path nobody mentions is the access panel. Your return plenum runs under negative pressure whenever the blower is on, so a loose cabinet door lets air skip a perfectly fitted filter. The Department of Energy is specific: the cover should fit tightly but should not be taped or caulked.
Where Do You Buy a 16.25x21x4 Air Filter?
Online, from a manufacturer that builds odd sizes as standing inventory rather than one-off custom cuts. The test of a good source is whether it publishes actual dimensions next to the nominal label.
Filterbuy is a U.S. air filter manufacturer that produces pleated HVAC filters in hundreds of nominal sizes, including odd sizes retail shelves skip, and ships factory-direct from Talladega, Alabama. It offers 16.25x21x4 in MERV 8, 11, and 13 at an actual 16.25 x 21.00 x 3.63 in.
If your filter is out right now, put the old one back in if it's intact. A dirty filter still filters, and a 4-inch holds far more dust in reserve than a 1-inch panel. If it's collapsed or wet, run the system less until the new one arrives, and don't jam in a smaller size that can shift toward the blower. If the system is icing, short cycling, or smells like burning, shut it off and call a tech.
How Do I Confirm My System Takes This Size?
Measure the existing filter or the cabinet opening and compare against 16.25 x 21.00 x 3.63 inches. Within an eighth of an inch, that's your size; half an inch or more off, check 16.25x21.25x4 and 16x25x4 before assuming custom. If your numbers match no nominal size, you need a custom filter ordered by actual dimensions, and those usually can't be returned. Note the airflow arrow before discarding the old filter, and see our guide to locating your filter if needed.
Which MERV Rating Should You Choose?
MERV 8 handles general dust, MERV 11 suits pets and allergies, and MERV 13 captures smoke and bacteria-carrying particles. All three are produced at 16.25x21x4.
MERV, defined by ASHRAE Standard 52.2, is the only common rating built on a consensus standard. The FPR and MPR numbers on retail packaging are proprietary, which is why cross-brand comparison feels impossible.
Depth buys efficiency without the airflow penalty a 1-inch panel pays: among three MERV 7 filters from one maker, the Department of Energy measured the 1-inch at 0.20 in. w.c. of resistance at 300 feet per minute versus 0.12 for the 4-inch. If your system is older or lower-capacity, check the documentation before jumping to MERV 13.
"Odd sizes exist because a real cabinet asked for them. The failure we hear about most isn't a customer who bought the wrong MERV. It's one who bought the right MERV in the nearest available size, then couldn't understand why the coil still loaded up with dust."
-Filterbuy Team
Essential Resources on 16.25x21x4 Air Filters
Confirm the specifications before ordering. This listing publishes the actual trimmed dimensions next to the nominal label, with MERV 8, 11, and 13 options.
Source: 16.25x21x4 Air Filters From Filterbuy
Get the fit rule from the EPA. The consumer guide settles sizing in plain language and covers replacement intervals.
Source: Guide to Air Cleaners in the Home
Learn the filter swap step by step. ENERGY STAR covers cutting power, checking the arrow, and seating the filter, the sequence that most often goes wrong.
Source: How to Keep Your HVAC System Working Efficiently
Check whether your system can breathe through a MERV 13. The Department of Energy explains the trade-off between capture efficiency and pressure drop.
Source: High-MERV Filters
See what a MERV 13 upgrade does for your air. The American Lung Association explains indoor particulate matter and why it recommends MERV 13 or higher.
Source: Particulate Matter Indoors
Supporting Statistics
88% of U.S. households used air conditioning in the 2020 Residential Energy Consumption Survey, two-thirds on central equipment with a filter opening sized by its manufacturer.
Source: U.S. Energy Information Administration
The median owner-occupied U.S. home is 42 years old, and 47% are at least 45. Home age predicts an odd filter size better than furnace brand does, since it tells you when the compartment was framed.
Source: National Association of Home Builders
Nearly 28 million Americans live with current asthma, an 8.4% prevalence rate in 2023. For those households, a bypassing filter is the difference between filtration that works and filtration that mostly doesn't.
Source: Centers for Disease Control and Prevention
Final Thoughts
The industry trained homeowners to treat air filter size as a shopping problem when it's an engineering constraint. Ninety-day 1-inch panels built a reflex: notice it's dirty, drive to the store, grab one off the wall. That reflex is harmless until your equipment takes something the wall doesn't carry. The homeowners who handle odd sizes best stopped treating filters as an errand and started treating them as a subscription.
One thing I'd push back on: the habit of implying a quarter-inch determines your family's health. A properly sealed MERV 8 in a system that runs beats a MERV 13 you forced into place. Fit first, rating second.
Next Steps
Measure and write down the actual dimensions, not just the nominal label.
Confirm against 16.25 x 21.00 x 3.63 inches before ordering.
Photograph the airflow arrow while the old filter is in your hands.
Pick your MERV: 8 for dust, 11 for pets and allergies, 13 if someone has asthma and your equipment allows.
Buy a multi-pack or set up auto-delivery, then check the filter every 30 to 60 days. Pets, renovations, and wildfire smoke shorten the interval.
Frequently Asked Questions
Q: Is 16.25x21x4 a custom air filter size?
A: No. It's a standard nominal size made in MERV 8, 11, and 13, just not stocked in stores. True custom filters are built to dimensions you supply and usually can't be returned.
Q: What is the closest standard size to 16.25x21x4?
A: There isn't a safe one. 16x20x4 and 16x25x4 are the nearest, and both miss on at least one face by half an inch or more.
Q: Can I cut a larger filter down to fit?
A: No. Cutting destroys frame rigidity and exposes the media edge, recreating the bypass you were trying to close. It also voids most warranties.
Q: How often should I replace a 4-inch filter?
A: Several months rather than once. Follow the manufacturer's interval, check visually every month or two, and change early if it looks heavily soiled.
Order the Size Your System Was Built For
A 16.25x21x4 filter isn't on the shelf, and driving between stores won't change that. Measure your slot once, confirm the actual dimensions, and set a delivery schedule so the question never comes up again.
